Thanks to its high-power density, this infrared radiant unit is highly energy efficient. This means that it is particularly well suited to drying large aluminium or metal parts. In addition to the advantages unique to Sunkiss USA Thermoreactors®, it has an ‘air recycling system’ option that makes it possible to reduce VOCs and remove air pollution. Its drying or curing temperature ranges from 160°F to 570°F.
Power: 75000 BTU
Weight: 128 lb
Dimensions: 1200 x 660 x 370 mm
Radiant surface: 940 x 470 mm
Power: 112600 BTU
Weight: 150 lb
Dimensions: 1600 x 660 x 370 mm
Radiant surface: 1410 x 470 mm
Safety thermocouple: 3 m
Electrical wiring with tolerance of: 570°F
Stainless steel gas hose: 3 m
Radiant surface: 1220 x 265 mm
Connections box:
– Gas supply by starter and main solenoid valves
– Junction box for digital temperature controller
Power: 27300 BTU
Weight: 117 lb
Dimensions: 1200 x 660 x 370 mm
Radiant surface: 2 x Ø 310 mm
Power: 41000 BTU
Weight: 139 lb
Dimensions: 1600 x 660 x 370 mm
Radiant surface: 3 x Ø 310 mm
Configured for air recycling.
Set solenoid valve pressure: 60″ wc
Electrical pre-heating: 10 min
Bracket for wall mounting
Safety thermocouple: 3 m
Electrical wiring with tolerance of: 570°F
Stainless steel gas hose: 1.5 m
Connections box:
– Gas supply by starter and main solenoid valves
– Junction box for digital temperature controller (2 or 3)
Power: 49100 BTU
Weight: 66 lb
Dimensions: 1550 x 350 x 290 mm
Configured for air recycling
Set solenoid valve pressure : 60″wc
Electrical pre-heating: 10 min
Bracket for wall mounting
Safety thermocouple: 3 m
Electrical wiring with tolerance of : 300°C 3 m.
Stainless steel gas hose : 3 m
Radiant surface : 1220 x 265 mm
Connections box :
– Gas supply by starter and main solenoid valves.
– Junction box for digital temperature controller
> 0% to 100% air recycling with temperature control by Thermoreactors®.
> Internationally patented system.
> Galvanised steel casing. Painted steel structure. Air filtering at 480°F – 144 lb
> Two push-pull air supply fans: 6400 m3/h – 5.5 kW.
> Motorised Belimo system and connecting rods.
> 3 configuration modes.
> Must be controled by a Pt100 sensor and a regulator.
Provision for :
10 VRX 30/VRM 30 Thermoreactors®
16 VRX 20/VRM 20 Thermoreactors®
18 VR 10000 Thermoreactors®

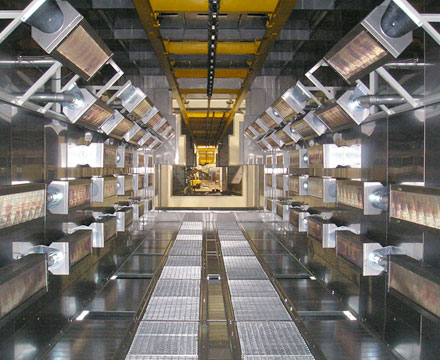

Applications for industrial drying ovens of the Air recycling range.
| Applications for industrial drying ovens |
|---|
| All large parts: carriages, agricultural machinery, plant, containers. |
